| Form | Chemistry |
Capacity (Ah) |
Dimension (mm) |
Weight (Kg) |
Energy Density (Wh/Kg) |
Cycle Life | Max. Constant Charge Rate |
Max. Constant Discharge Rate |
||
| Length | Height | Thickness | ||||||||

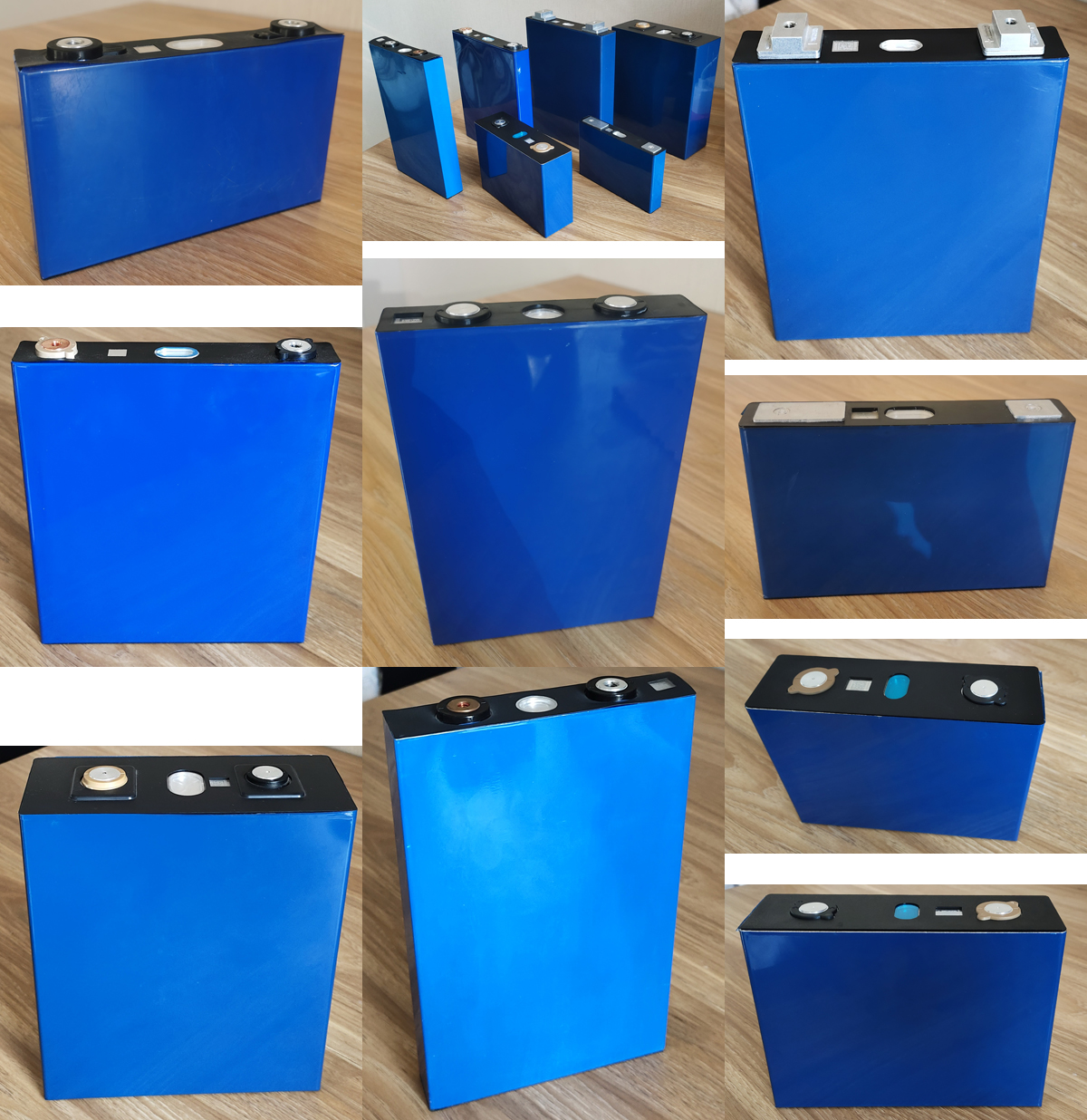

| Prismatic | LFP | 50(R) | 148.44±0.6 | 95.77±0.6 | 39.72±0.3 | 1.18±0.05 | 140.0 | 4000 | 1 | 1 |
| 50(E) | 135.3±0.5 | 185.3±0.5 | 29.3±0.4 | 1.4±0.05 | 114.3 | 5000 | 3 | 3 | ||
| 72 | 140 | 198 | 66 | 2.7 | 85.3 | 2000 | 1 | 1 | ||
| 100 | 160±0.3 | 118.42±0.3 | 49.9±0.3 | 1.97±0.1 | 162.4 | 3000 | 1 | 1 | ||
| 100 | 173.9±1 | 28.8±1 | 207.6±1 | 2.2±0.1 | 145.5 | 3000 | 2 | 3 | ||
| 105 | 130.3±0.3 | 200.5±0.5 | 36.7±0.5 | 1.98±0.1 | 169.7 | 3500 | 1 | 1 | ||
| 105 | 130.3±0.3 | 200.5±0.5 | 36.7±0.5 | 1.98±0.1 | 169.7 | 3500 | 1 | 1 | ||
| 120(H) | 173.9±0.5 | 170±0.6 | 48.0±0.5 | 2.86 | 134.3 | 4000 | 2 | 2 | ||
| 135 | 149.10±0.6 | 105.31± 0.6 | 79. 22±0.5 | 2.61±0.15 | 168.0 | 3500 | 1 | 1 | ||
| 163 | 173.9±0.15 | 228.6±0.3 | 36.4±0.15 | 3.03±0.06 | 172.1 | 4000 | 1 | 2 | ||
| 205 | 174.7±0.5 | 207.2±0.6 | 53.7±0.15 | 3.9±0.12 | 168.2 | 4000 | 1 | 1 | ||
| 230(C) | 173.9±0.15 | 207.2±0.3 | 53.72±0.15 | 4.17±0.16 | 176.5 | 4000 | 1 | 1 | ||
| 230(R) | 173.9±0.5 | 207.2±0.6 | 53.7±0.15 | 4.09±0.12 | 180.0 | 4000 | 1 | 1 | ||
| 280(E) | 173.6±0.3 | 204.8±0.5 | 72±1.0 | 5.22±0.2 | 171.6 | 3500 | 1 | 1 | ||
| 280(R) | 174.7±0.5 | 207.1±0.6 | 71.47±0.15 | 5.27±0.16 | 170.0 | 4000 | 1 | 1 | ||
| 302 | 173.9±0.5 | 207.2±0.6 | 71.55±0.15 | 5.4±0.16 | 179.0 | 4000 | 1 | 1 | ||
| NMC | 50 | 148.20±0.15 | 101.9±0.3 | 26.66±0.15 | 0.861±0.05 | 212.0 | 2000 | 0.3 | 1 | |
| 58 | 148.24±0.15 | 105.9±0.3 | 26.66±0.15 | 0.926±0.02 | 229.2 | 2000 | 0.25 | 0.33 | ||
| 155 | 148 | 97 | 79 | 2.6±0.05 | 218.2 | 2000 | 1.2 | 2 | ||
| 174 | 149.1±0.6 | 102.77±0.6 | 79.22±0.3 | 2.7±0.1 | 235.9 | 1500 | 1.2 | 2 | ||
| Form | Chemistry | Model | Dimension (mm) |
Nominal Capacity (Ah) |
Weight (Kg) |
Cycle Life | Max. Constant Charge Rate |
Max. Constant Discharge Rate |
|
| Φ | H | ||||||||

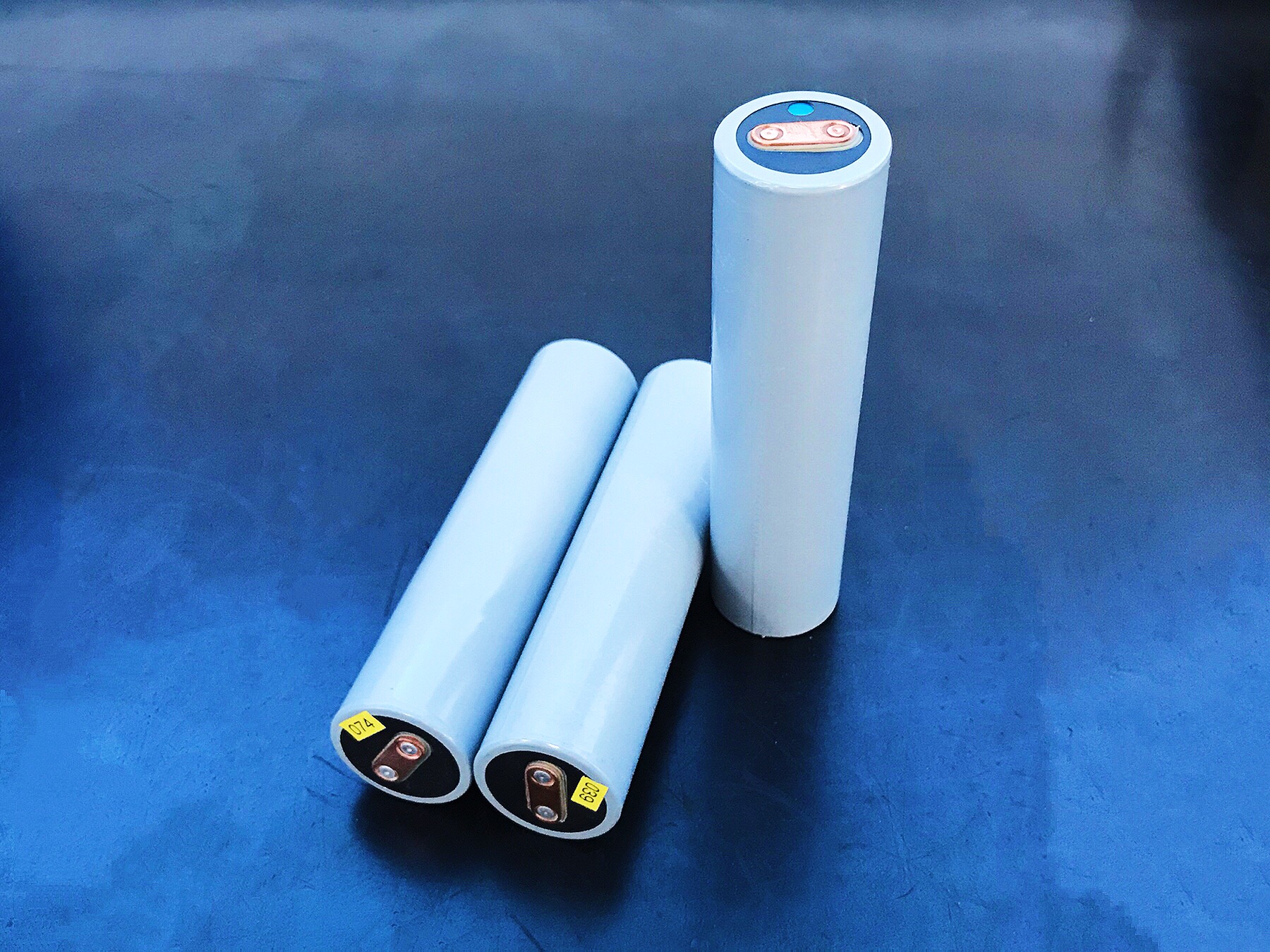

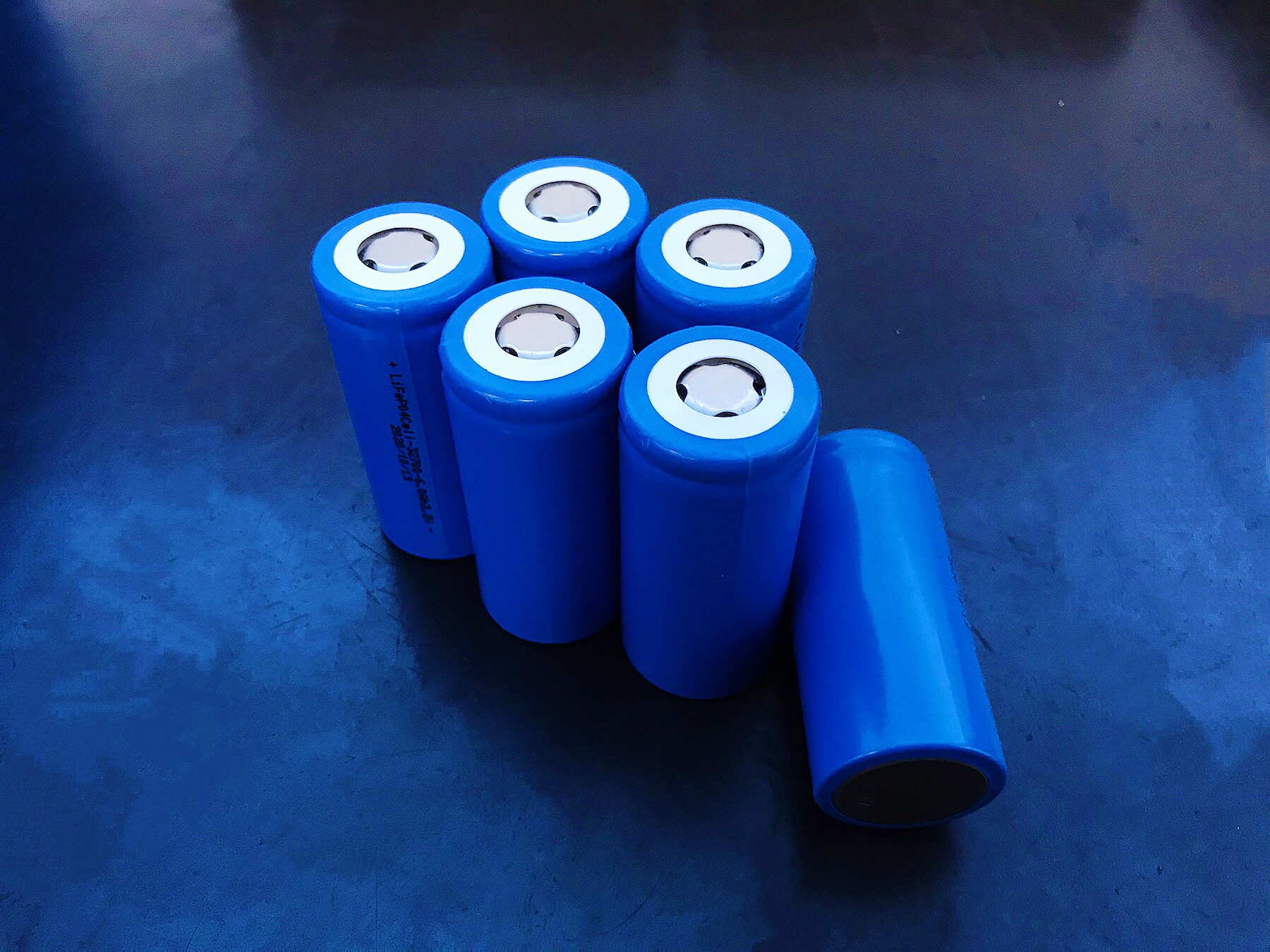

| Cylindrical | LFP | 32700 | 32.4±0.1 | 70.5±0.4 | 6 | 0.141 | 2000 | 1 | 3 |
| IFR1600 | 18.3±0.2 | 65.2±0.2 | 1.6 | 0.041 | 2000 | 1 | 3 | ||
| IFR1800 | 18.3±0.2 | 65.2±0.2 | 1.8 | 0.042 | 2000 | 1 | 3 | ||
| IFR3600 | 26.2±0.2 | 65.5±0.3 | 3.6 | 0.085 | 2000 | 1 | 3 | ||
| NMC | IFR2600 | 18.3±0.2 | 65.2±0.2 | 2.6 | 0.0465 | 1000 | 1 | 3 | |

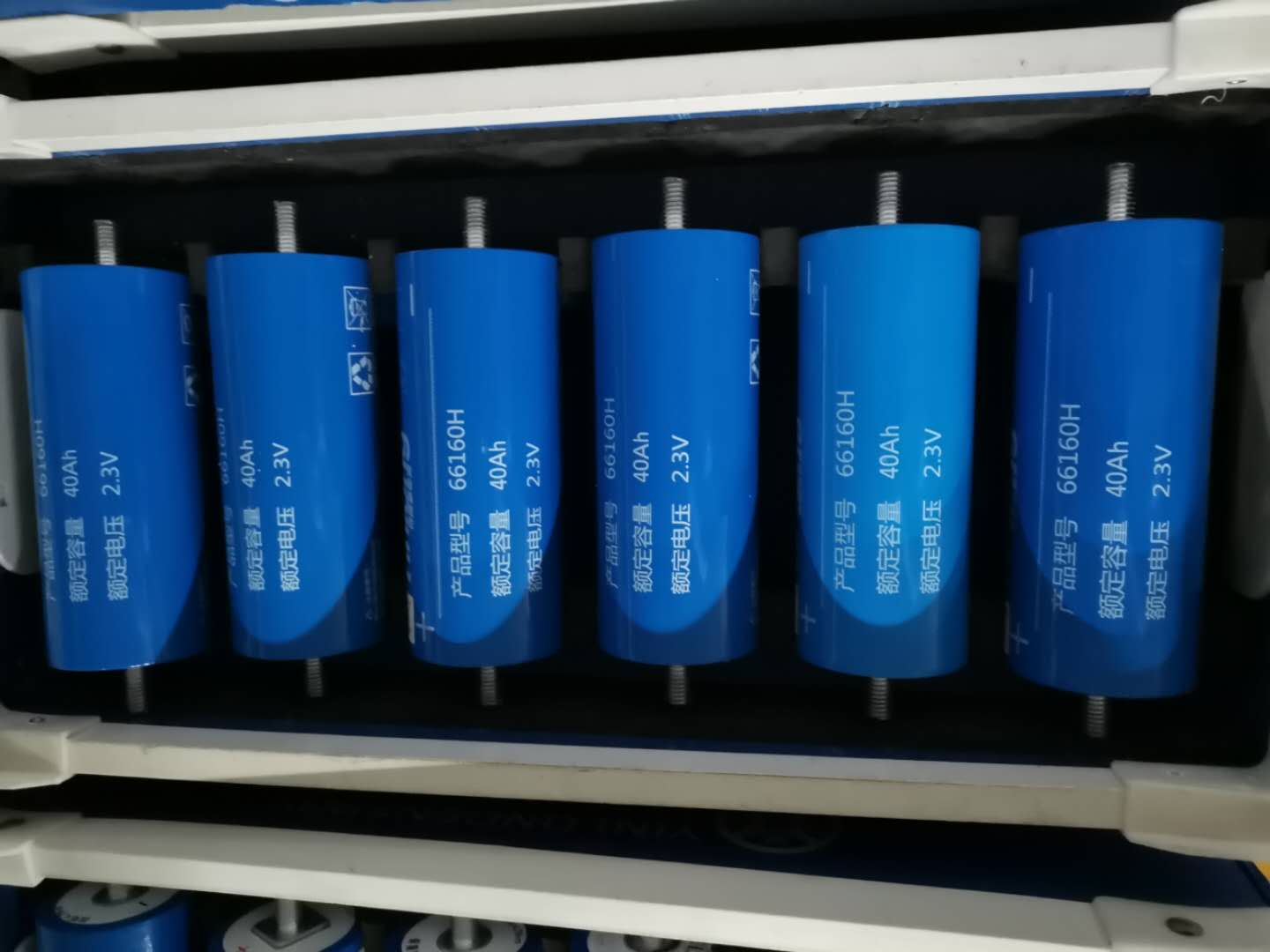

| LTO | CGC32145EB | 32.5±0.2 | 155.0±1.0 | 10 | 0.28 | 7000 | 3 | 3 | |
| CGC32145LB | 32.5±0.2 | 155.0±1.0 | 12.5 | 0.28 | 20000 | 10 | 10 | ||
| CGC32145PB | 32.5±0.2 | 155.0±1.0 | 10.5 | 0.27 | 20000 | 10 | 10 | ||
| CGC60138EA | 60.7±0.7 | 138.6±0.6 | 30 | 0.85 | 5000 | 0.5 | 1 | ||
| CGC60138EB | 60.7±0.7 | 138.6±0.6 | 30 | 0.85 | 7000 | 3 | 3 | ||
| CGC60138LB | 60.7±0.7 | 138.6±0.6 | 36 | 0.85 | 20000 | 10 | 10 | ||
| CGC60138PB | 60.7±0.7 | 138.6±0.6 | 28 | 0.83 | 20000 | 10 | 10 | ||
| CGC60138XA | 60.7±0.7 | 138.6±0.6 | 10 | 0.58 | 50000 | 30 | 30 | ||
